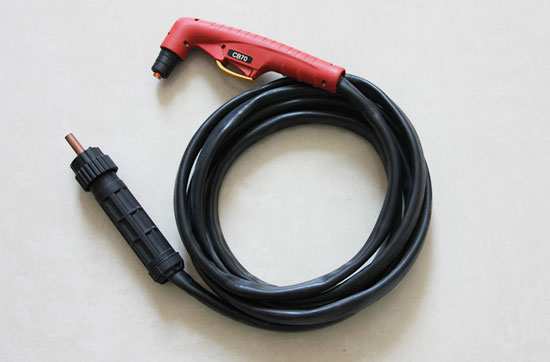

Email Us:Plasma Cutting Torch CB70 Compatible for Cebora
| Item | Plasma Cutting Torch CB70 Compatible for Cebora |
| Rating | 70 Amps @ 60％ Duty Cycle Cutting Capacity: 20mm Max(most materials) Gas: Single Air Flow: 180 litres per minute |
| Rear Connector | Central Connector, 1/8 BSP |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |

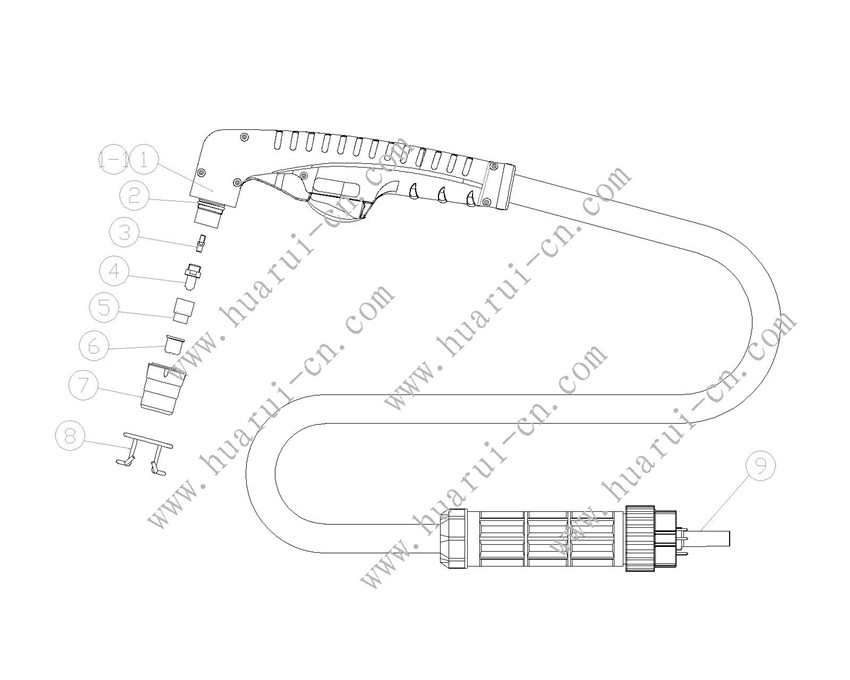

| Plasma Cutting Spare Parts: Torch head, Tip, Electrode, Swirl Ring, Gas Diffuser, Nozzle Rtaining Cap | |
| 1. C1351 | Torch Head -Hand |
| 2. C1349 | Torch Head - Machine |
| 3. C3160067 | O-Ring - Torch Head |
| 4. C3065204 | Diffuser |
| 5. C1402 | Electrode,hafnium |
| 6. C1510 | Swing Ring |
| 7. C1309 | Tip 0.9mm - 35 Amp |
| C1396 | Tip 1.0mm - 50 Amp |
| C1308 | Tip 1.2mm - 70 Amp |
| 8. C1305 | Cutting Tip 1.0mm - Concial |
| 9. C1368 | Extended Electrode Hafnium |
| 10. C1366 | Extended Tip 0.9mm - 35 Amp |
| C1395 | Extended Tip 1.0mm - 50 Amp |
| Extended Tip 1.2mm - 70 Amp | |
| 11. C5.710.171 | Nozzle Retaining Cap |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
