Email Us:Plasma Cutting Torch PT31 Compatible for ESAB

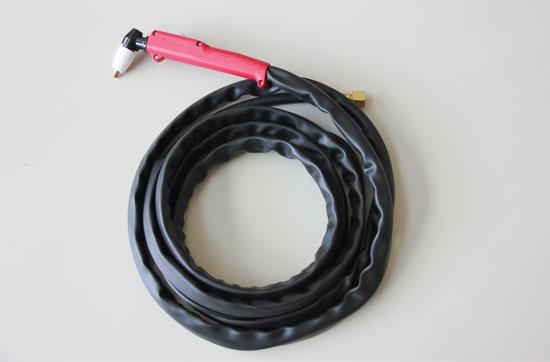

| Item | Plasma Cutting Torch PT31 Compatible for ESAB |
| Rating | 40 Amps @ 35％ Duty Cycle Cutting Capacity: 10mm Gas: Singl Air,0.35-0.45 litres Mpa |
| Rear Connector | 3/8'' BSP, M16*1.5 |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |

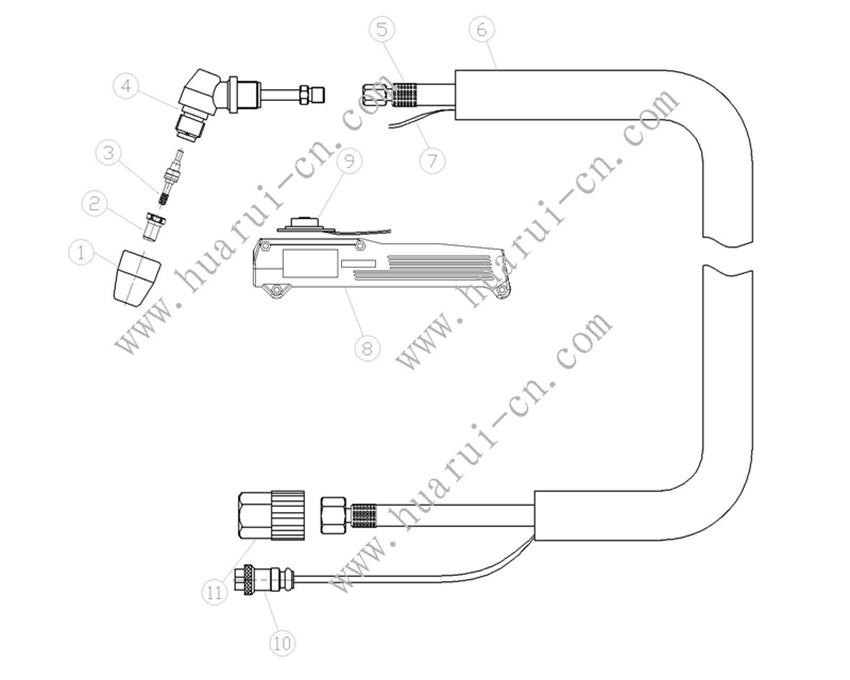

| Plasma Cutting Spare Parts: Torch head, Tip, Electrode, Swirl Ring, Gas Diffuser, Nozzle Rtaining Cap | |
| A. | Torch Head -Hand |
| B. | Handle c/w Switch |
| 1. 18205 | Electrode - Zirconium |
| 2. 19683 | Electrode HD - 30-50 amp - Hafnium |
| 3. 20862 | Electrode - Hafnium |
| 4. 18785 | Swirl Baffle - 4 Holes |
| 5. 20463 | Swirl Baffle - 6 Holes |
| 6. 18204 | Shield Cup |
| 7. 18866 | Tip 1.0 - .039 - 30 amp |
| 8. 19682 | Tip HD 0.96 - .038 - 30 amp |
| 20079 | Tip HD 1.35 - .053 - 50 amp |
| 9. 20860 | Tip 0.96 - .038 - 30 amp |
| 21008 | Tip 1.07 - .042 - 40 amp |
| 20861 | Tip 1.17 - .046 - 50 amp |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
