    • WP-12 Water-Cooled Cooled Argon Arc Welding Torch
Detailed Product Description

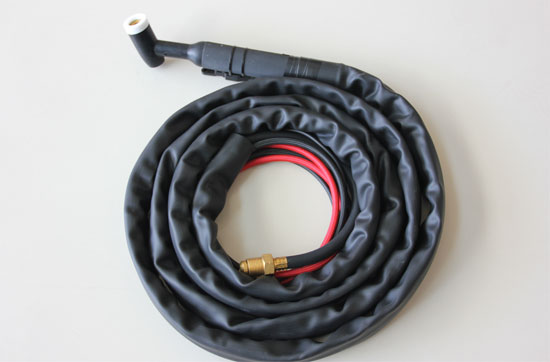

TIG WP-12 Water Cooled Tungsten Argon Arc Welding Torch

Item TIG WP-12 Water Cooled Tungsten Argon Arc Welding Torch
Rating500A DC, 100％ Duty Cycle, Tungsten Diameter: 1.6-6.4mm
Rear Connector5/8''-18 UNF RH, 7/8''-14 UNF LH, 5/8''-18 UNF LH
CertificationISO9001, CCC, CE, ROHS, TUV
Packing1set/box neutral packing, 5sets/Carton Box

CONSUMABLES PARTS
1. WP-12Torch body
WP-12VTorch body
2. 56Y44Back Cap Long
3. 56Y45Back Cap Short
4. 12NGCup Gasket
5. 85Z14, 1.6MMCollet
85Z15, 2.4MMCollet
85Z16, 3.2MMCollet
85Z17, 4.0MMCollet
85Z18, 4.8MMCollet
85Z19, 6.4MMCollet
6. 11WP65Collet Body,all size
7. 11GL16 1.6MMGas Lens Body
11GL332 2.4MMGas Lens Body
11GL18 3.2MMGas Lens Body
11GL53 4.0MMGas Lens Body
11GL36 4.8MMGas Lens Body
8. 14N57, 4Ceramic Cup
14N58, 5Ceramic Cup
14N59, 6Ceramic Cup
14N60, 7Ceramic Cup
14N61, 8Ceramic Cup
14N61-10, 10Ceramic Cup
14N61-12, 12Ceramic Cup
9. 57N75, 6Ceramic Cup for Gas Lens
57N74, 8Ceramic Cup for Gas Lens
53N88, 10Ceramic Cup for Gas Lens
53N87, 12Ceramic Cup for Gas Lens
10. 950Micro Switch Bulbous Button
950FMicro Switch Flat Button
11. 85WP13Handle,smooth
12. 40V82RGas hose, 4m
40V82RLGas hose, 8m
13. 40V84RPower Cable, 4m
40V84RLPower Cable, 8m
14. 40V83RWater hose, 4m
40V83RLWater hose, 8m
15. 609123Protective Neoprene Cover, 4m
609125Protective Neoprene Cover, 8m

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
