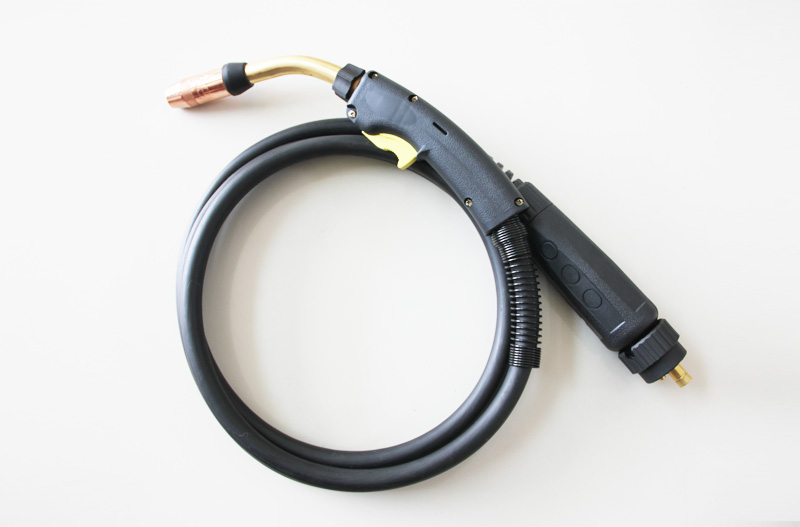

Email Us:MIG/MAG HRBN Q300 Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRBN Q300 Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 370A CO2/310A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.6mm |
| Rear Connector | Bernard Connector, Euro Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 torch nozzle | |
| N-5818C | Nozzle ￠15.8 Copper STD. |
| N-5818B | Nozzle ￠15.8 Brass |
| Welding Contact tip / Torch tip | |
| T-030 | Contact Tip E-CU 0.8mm |
| T-035 | Contact Tip E-CU 0.9mm |
| T-039 | Contact Tip E-CU 1.0mm |
| T-045 | Contact Tip E-CU 1.2mm |
| Welding Torch Liner | |
| 43110 | Steel Liner 0.8-1.2mm, 3m |
| 43115 | Steel Liner 1.0-1.2mm, 4.5m |
| Welding Torch Spare parts: Gas Diffuser, Tip holder, Swan neck, Insulator | |
| 1.D-1 | Tip Holder |
| 2.10012 | Insulator |
| 3.QT3-45 | Swan Neck |
| 4.HR4305 | Torch Body Nut |
| 5.HR1880155 | Front Handle With Screws |
| 6.HR5662 | Switch, Yellow |
| 7.HR4213B | Torch Body |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
