Email Us:MIG/MAG HRBN300 Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRBN300 Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 300A CO2/ 200A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.2mm |
| Rear Connector | Bernard Connector, Euro Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 torch nozzle | |
| A4391 | Nozzle Conical ￠16mm, Brass |
| A4392 | Nozzle Tapered ￠13mm, Brass |
| Welding Contact tip / Torch tip | |
| B7497 | Contact Tip E-CU 32*0.6mm |
| B7488 | Contact Tip E-CU 32*0.8mm |
| B7489 | Contact Tip E-CU 32*0.9mm |
| B7496 | Contact Tip E-CU 32*1.0mm |
| B7490 | Contact Tip E-CU 32*1.2mm |
| Welding Torch Liner | |
| C43015 | Black Steel Liner 0.6-0.8mm , 5m,Out Dia 4.1/1.3 |
| C43115 | Black Steel Liner 0.8-1.2mm , 5m,Out Dia 4.0/1.6 |
| C1501 | Blue Steel Liner 0.6-0.9mm , 5m,Out Dia 4.1/1.3 |
| C1506 | Red Steel Liner 1.0-1.2mm,5m,Out Dia 4.1/1.3 |
| C4004 | Green Steel Liner 2.0-2.4mm,3m,Out Dia 4.8/3.2 |
| C4005 | Green Steel Liner 2.0-2.4mm,4m,Out Dia 4.8/3.2 |
| C4006 | Green Steel Liner 2.0-2.4mm,5m,Out Dia 4.8/3.2 |

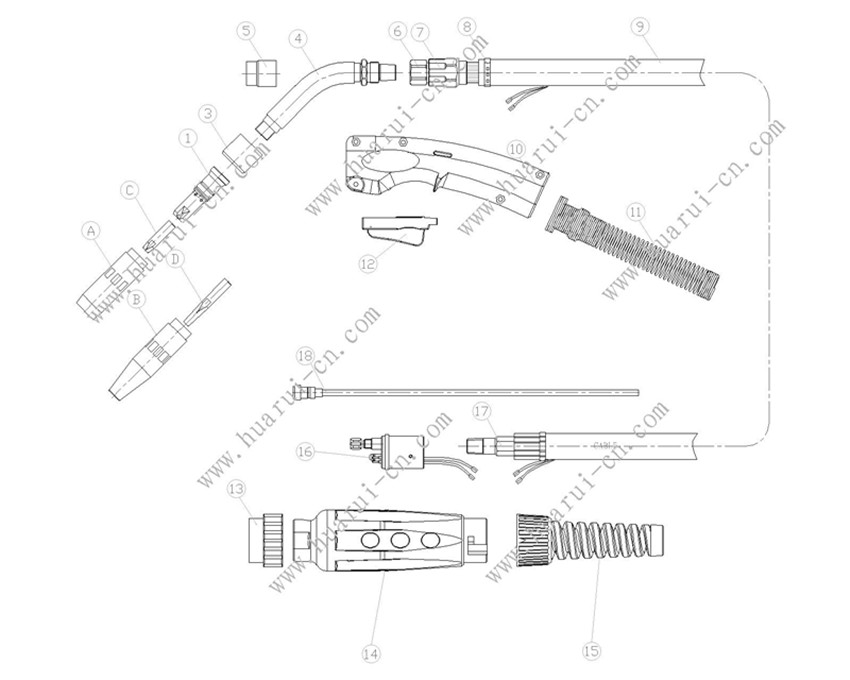

| Welding Torch Spare parts: Gas Diffuser, Tip holder, Swan neck, Insulator | |
| D4335 | Tip Holder |
| D4323R | Cap |
| D4780 | Insulator For Hexagonal Nut |
| D4786 | Swan Neck |
| D4213B | End Fitting |
| D4305 | Cone Nut |
| D1780006 | Front Handle |
| D5662 | Trigger |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
