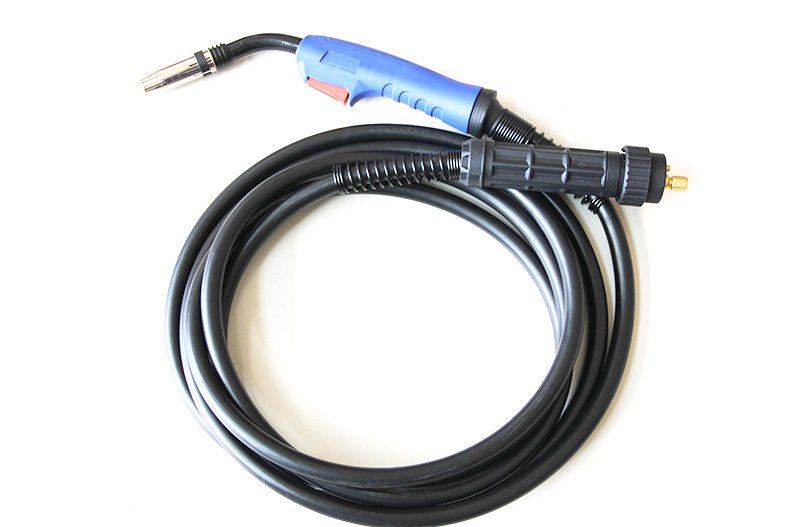

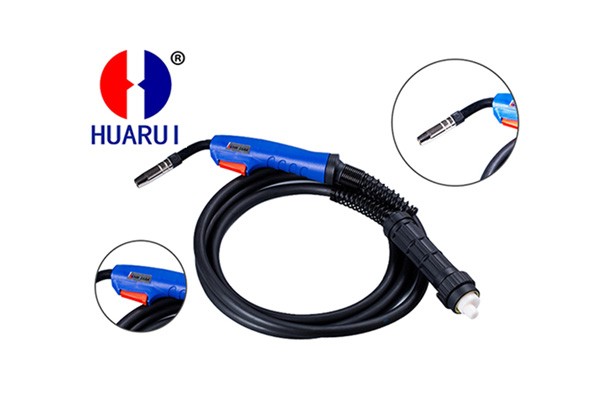

Email Us:MIG/MAG HRMB24KD Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRMB24KD Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 250A CO2/ 220A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.2mm |
| Rear Connector | Euro Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 Torch Nozzle | |
| A2401 145.0047 | Nozzle Cylindrical |
| A2402 145.0080 | Nozzle Conical |
| A2403 145.0128 | Nozzle Tapered |
| A2404 | Nozzle Bottle |
| A2405 | Nozzle Spot Welding |
| Welding Contact Tip / Torch Tip | |
| B2401 140.0005 | Contact Tip E-CU M6*28*0.6mm |
| B2402 140.0051 | Contact Tip E-CU M6*28*0.8mm |
| B2403 140.0169 | Contact Tip E-CU M6*28*0.9mm |
| B2404 140.0242 | Contact Tip E-CU M6*28*1.0mm |
| B2405 140.0379 | Contact Tip E-CU M6*28*1.2mm |
| Welding Torch Liner | |
| C2401 124.0011 | Blue Steel Liner 0.6-0.9mm * 3m |
| C2402 124.0012 | Blue Steel Liner 0.6-0.9mm * 4m |
| C2403 124.0015 | Blue Steel Liner 0.6-0.9mm * 5m |
| C2404 124.0026 | Red Steel Liner 1.0-1.2mm, 3m |
| C2405 124.0031 | Red Steel Liner 1.0-1.2mm, 4m |
| C2406 124.0035 | Red Steel Liner 1.0-1.2mm, 5m |

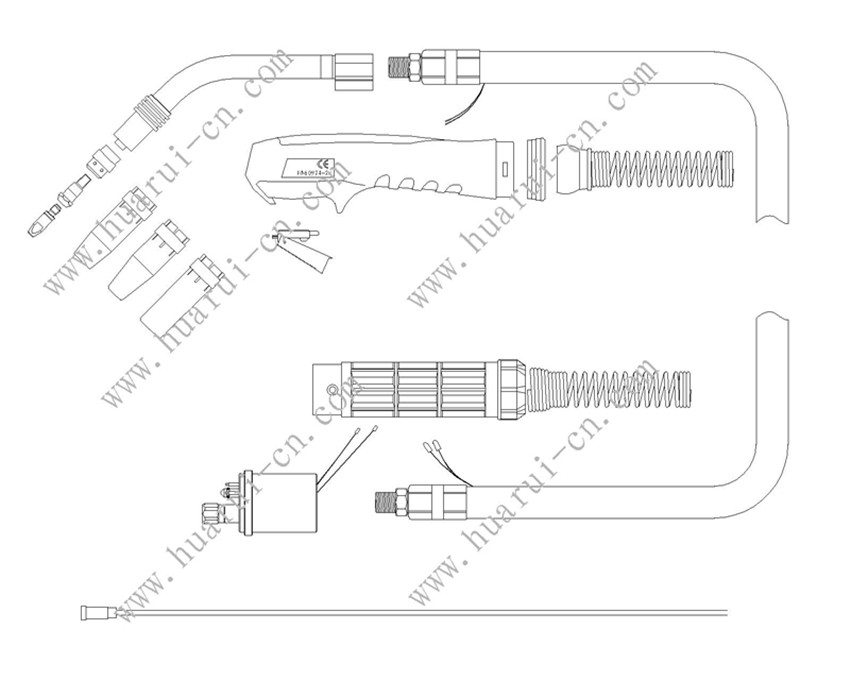

| Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck | |
| D2401 142.0003 | Tip Holder |
| D2402 012.0183 | Gas Diffuser |
| D2403 012.0001 | Swan Neck |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
