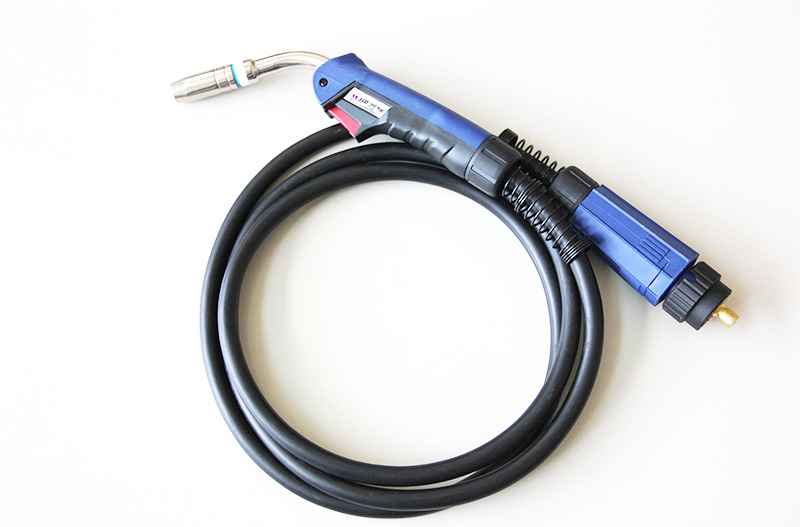

Email Us:MIG/MAG HRMB25AK Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRMB25AK Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 230A CO2 /200A Mixed Gas, Duty Cycle 60% Wire Diameter: 0.8-1.2mm |
| Rear Connector | Euro Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 Torch Nozzle | |
| A2501 145.0042 | Nozzle Cylindrical |
| A2502 145.0076 | Nozzle Conical |
| A2503 145.0124 | Nozzle Tapered |
| A2504 145.0144 | Nozzle Bottle |
| A2505 145.0169 | Nozzle Spot Welding |
| Welding Contact Tip / Torch Tip | |
| B2501 140.0005 | Contact Tip E-CU M6*28*0.6mm |
| B2502 140.0051 | Contact Tip E-CU M6*28*0.8mm |
| B2503 140.0169 | Contact Tip E-CU M6*28*0.9mm |
| B2504 140.0242 | Contact Tip E-CU M6*28*1.0mm |
| B2505 140.0379 | Contact Tip E-CU M6*28*1.2mm |
| Welding Torch Liner | |
| C2501 124.0011 | Blue Steel Liner 0.6-0.9mm * 3m |
| C2502 124.0012 | Blue Steel Liner 0.6-0.9mm * 4m |
| C2503 124.0015 | Blue Steel Liner 0.6-0.9mm * 5m |
| C2504 124.0026 | Red Steel Liner 1.0-1.2mm, 3m |
| C2505 124.0031 | Red Steel Liner 1.0-1.2mm, 4m |
| C2506 124.0035 | Red Steel Liner 1.0-1.2mm, 5m |
| Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck | |
| D2501 142.0001 | Tip Holder |
| D2502 003.0013 | Spring Support |
| D2503 004.0012 | Swan Neck |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
