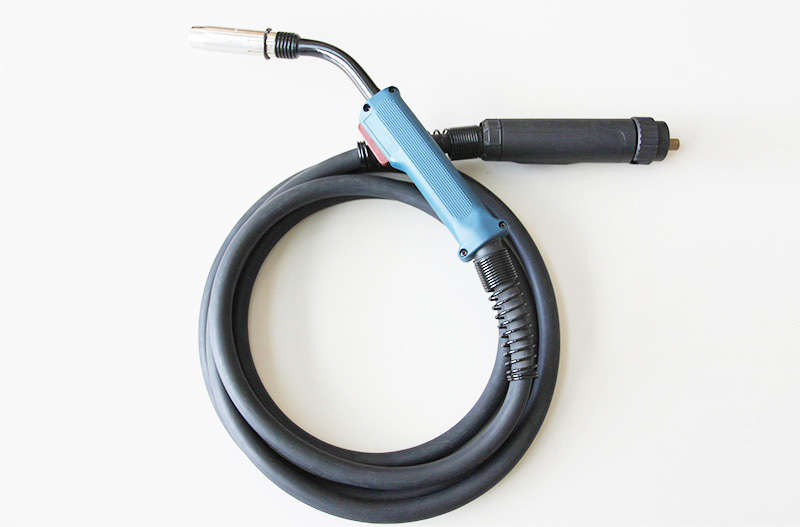

Email Us:MIG/MAG HRMB40KD Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRMB40KD Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 380A CO2/ 360A Mixed Gas, Duty Cycle 60% Wire Diameter: 1.0-2.4mm |
| Rear Connector | Euro Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |

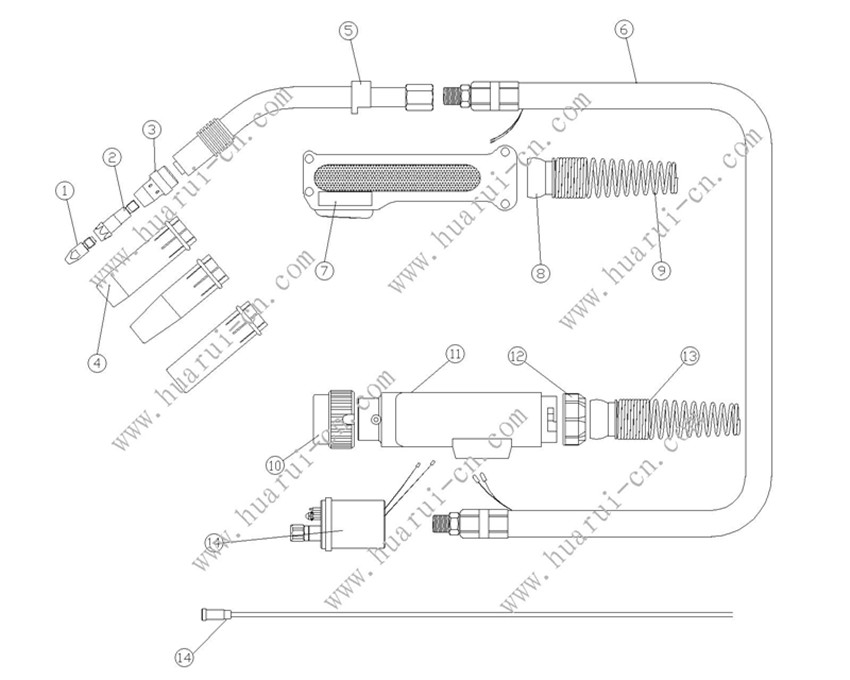

| Welding Gas Nozzle/ CO2 Torch Nozzle | |
| A4001 145.0046 | Nozzle Cylindrical |
| A4002 145.0079 | Nozzle Conical |
| A4003 145.0127 | Nozzle Tapered |
| Welding Contact Tip / Torch Tip | |
| B4001 140.0313 | Contact Tip E-CU M8*30*1.0mm |
| B4002 140.0442 | Contact Tip E-CU M8*30*1.2mm |
| B4003 140.0587 | Contact Tip E-CU M8*30*1.6mm |
| B4004 141.0008 | Contact Tip E-CU M8*30*1.0Amm |
| B4005 141.0015 | Contact Tip E-CU M8*30*1.2Amm |
| B4006 141.0022 | Contact Tip E-CU M8*30*1.6Amm |
| Welding Torch Liner | |
| C4001 124.0026 | Red Steel Liner 1.0-1.2mm, 3m |
| C4002 124.0031 | Red Steel Liner 1.0-1.2mm, 4m |
| C4003 124.0035 | Red Steel Liner 1.0-1.2mm, 5m |
| C4004 124.0041 | Yellow Steel Liner 1.6mm,3m |
| C4005 124.0042 | Yellow Steel Liner 1.6mm,4m |
| C4006 124.0044 | Yellow Steel Liner 1.6mm,5m |
| C4007 124.0051 | Green Steel Liner 2.0-2.4mm,3m |
| C4008 124.0053 | Green Steel Liner 2.0-2.4mm,4m |
| C4009 124.0055 | Green Steel Liner 2.0-2.4mm,5m |
| Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck | |
| D4001 142.0021 | Contact Tip Holder |
| D4002 | Gas Diffuser |
| D4003 015.0001 | Swan Neck |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
