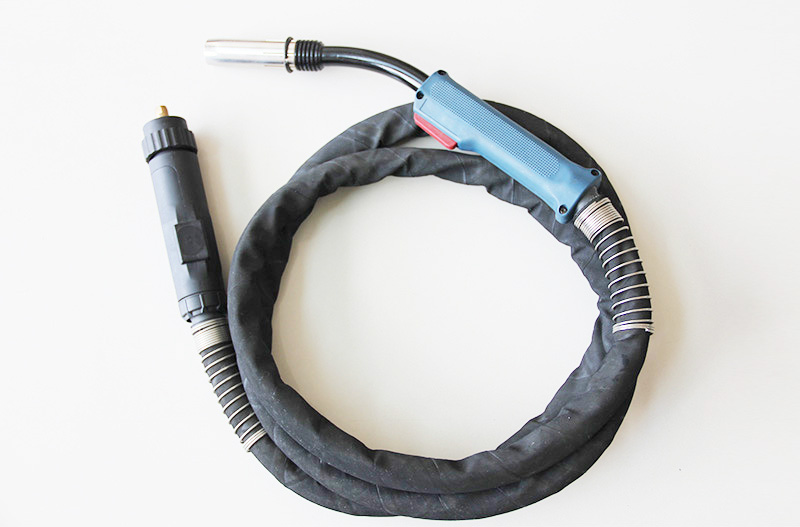

Email Us:MIG/MAG HRMB61GD Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRMB61GD Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 500A CO2/ 400A Mixed Gas, Duty Cycle 60% Wire Diameter: 1.6-3.2mm |
| Rear Connector | Euro Connector |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 Torch Nozzle | |
| A6101 145.0048 | Nozzle Cylindrical |
| A6102 145.0081 | Nozzle Conical |
| A6103 | Nozzle Tapered |
| A6104 | Nozzle Spot Welding |
| Welding Contact Tip / Torch Tip | |
| B6101 140.0616 | Contact Tip CuCrZr M10*35*1.6mm |
| B6102 140.0065 | Contact Tip CuCrZr M10*35*2.0mm |
| B6103 140.0698 | Contact Tip CuCrZr M10*35*2.4mm |
| B6104 140.0712 | Contact Tip CuCrZr M10*35*2.8mm |
| B6105 140.0734 | Contact Tip CuCrZr M10*35*3.2mm |
| Welding Torch Liner | |
| C6101 122.0056 | 2.5/4.5 Steel Liner 1.4-1.6mm,3m |
| C6102 122.0060 | 2.5/4.5 Steel Liner 1.4-1.6mm,4m |
| C6103 122.0063 | 2.5/4.5 Steel Liner 1.4-1.6mm,5m |
| C6104 122.0073 | 3.5/4.9 Steel Liner 2.0-2.4mm,3m |
| C6105 122.0075 | 3.5/4.9 Steel Liner 2.0-2.4mm,4m |
| C6106 122.0076 | 3.5/4.9 Steel Liner 2.0-2.4mm,5m |
| C6107 122.0066 | 2.8/6.3 Steel Liner 1.6-2.0mm,3m |
| C6108 122.0067 | 2.8/6.3 Steel Liner 1.6-2.0mm,4m |
| C6109 122.0068 | 2.8/6.3 Steel Liner 1.6-2.0mm,5m |
| C6110 122.0079 | 3.5/7.0 Steel Liner 2.4mm,3m |
| C6111 122.0080 | 3.5/7.0 Steel Liner 2.4mm,4m |
| C6112 122.0082 | 3.5/7.0 Steel Liner 2.4mm,5m |
| C6113 122.0083 | 4.5/7.0 Steel Liner 2.8-3.2mm,3m |
| C6114 122.0084 | 4.5/7.0 Steel Liner 2.8-3.2mm,4m |
| C6115 122.0086 | 4.5/7.0 Steel Liner 2.8-3.2mm,5m |

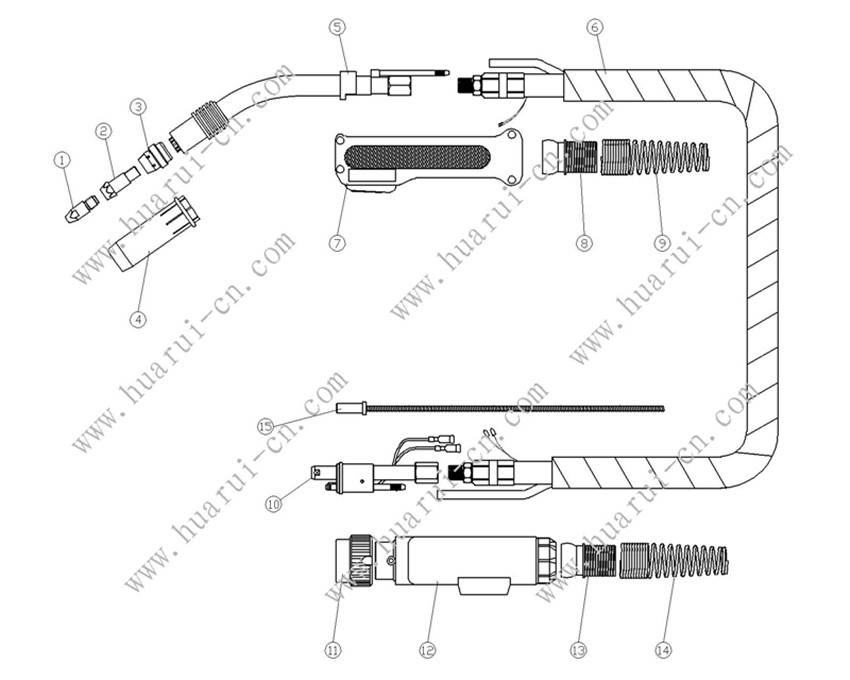

| Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck | |
| D6101 142.0032 | Tip Holder |
| D6102 013.0030 | Gas Diffuser |
| D6103 013.0001 | Swan Neck |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
