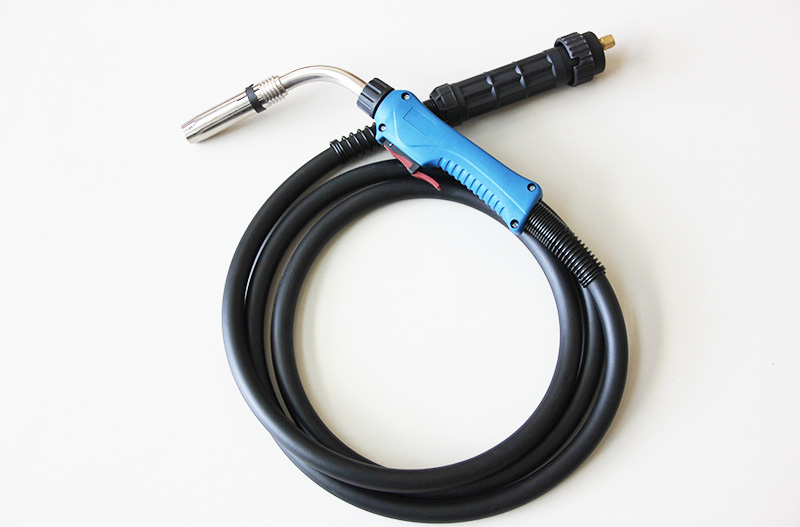

Email Us:MIG/MAG HRRMBX36S Air-Cooled CO2/Mixed Shielded Welding Torch
| Item | MIG/MAG HRRMBX36S Air-Cooled CO2/Mixed Shielded Welding Torch |
| Rating | 360A CO2/300A Mixed Gas, Duty Cycle 60%; Wire Diameter: 1.0-1.6mm |
| Rear Connector | Euro Connector |
| Handle | New Style handle type |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Welding Gas Nozzle/ CO2 Torch Nozzle | |
| A3601 145.0045 | Nozzle Cylindrical ￠19 |
| A3602 145.0078 | Nozzle Conical ￠16 STD |
| A3603 145.0126 | Nozzle Tapered ￠12 |
| Welding Contact Tip / Torch Tip | |
| B3603 140.0313 | Contact Tip E-CU M8*30*1.0mm |
| B3604 140.0442 | Contact Tip E-CU M8*30*1.2mm |
| B3606 140.0587 | Contact Tip E-CU M8*30*1.6mm |
| Welding Torch Liner | |
| C3601 124.0026 | Red Steel Liner 1.0-1.2mm, 3m |
| C3602 124.0031 | Red Steel Liner 1.0-1.2mm, 4m |
| C3603 124.0035 | Red Steel Liner 1.0-1.2mm, 5m |
| Welding Torch Spare Parts: Gas Diffuser, Tip Holder, Swan Neck | |
| D3601 142.0020 | Tip Holder M8*28 |
| D3602 014.0261 | Gas Diffuser |
| HR014.D829 | Swan Neck |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
