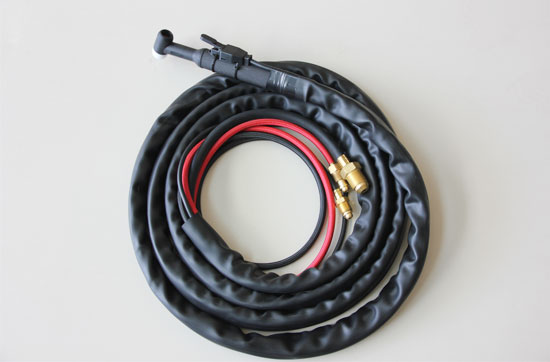

Email Us:TIG WP-18 Water Cooled Tungsten Argon Arc Welding Torch
| Item | TIG WP-18 Water Cooled Tungsten Argon Arc Welding Torch |
| Rating | 350A DC, 250A AC, Tungsten Diameter: 0.5-4.0mm |
| Rear Connector | 1/4G, M12*1, 3/8G, 35-50 connector, 5/8'' UNF RH, 7/8''-14UNF LH, 5/8'' 18UNF LH |
| Certification | ISO9001, CCC, CE, ROHS, TUV |
| Packing | 1set/box neutral packing, 5sets/Carton Box |
| Collet | |
| 10N21 | Collet Dia.0.5mm |
| 10N22 | Collet Dia.1.0mm |
| 10N23 | Collet Dia.1.6mm |
| 10N24 | Collet Dia.2.4mm |
| 10N25 | Collet Dia.3.2mm |
| 54N20 | Collet Dia.4.0mm |
| Collet Body | |
| 10N29 | Collet Body Dia. 0.5mm |
| 10N30 | Collet Body Dia. 1.0mm |
| 10N31 | Collet Body Dia. 1.6mm |
| 10N32 | Collet Body Dia. 2.4mm |
| 10N28 | Collet Body Dia. 3.2mm |
| 406488 | Collet Body Dia. 4.0mm |
| Alumina nozzle/ Ceramic Nozzle | |
| 10N50 | Std. Ceramic Cup Dia. 6mm |
| 10N49 | Std. Ceramic Cup Dia. 8mm |
| 10N48 | Std. Ceramic Cup Dia. 10mm |
| 10N47 | Std. Ceramic Cup Dia. 11mm |
| 10N46 | Std. Ceramic Cup Dia. 13mm |
| 10N45 | Std. Ceramic Cup Dia. 16mm |
| 10N44 | Std. Ceramic Cup Dia. 19mm |
| Gas Lens Collet Body | |
| 45V29 | Gas Lens Body Dia. 0.5mm |
| 45V24 | Gas Lens Body Dia. 1.0mm |
| 45V25 | Gas Lens Body Dia. 1.6mm |
| 45V26 | Gas Lens Body Dia. 2.4mm |
| 45V27 | Gas Lens Body Dia. 3.2mm |
| 45V28 | Gas Lens Body Dia. 4.0mm |
| CONSUMABLES PARTS | |
| 18CG | Heat Shield Cup Gasket |
| 18CG20 | Heat Shield Cup Gasket |
| 54N01 | Heat Shield Cup Gasket |
| 54N63 | Heat Shield Cup Gasket(Large Dia Gas Lens) |
| WP18 | Torch body(With Gasket) |
| 98W18 | Back Cap " O " Ring |
| 57Y02 | Back Cap Long |
| 57Y04 | Back Cap Short |
| 950 | Micro Switch Bulbous Button |
| 950F | Micro Switch Flat Button |
| 950-40 | Bulbous Micro switch C/W 4mt 2 Core Cable |
| 950-80 | Bulbous Micro switch C/W 8mt 2 Core Cable |
| RDZ0590 | Switch Boot |
| 607663 | Switch Retaining Boot |
| 609123 | Protective Neoprene Cover, 4m |
| 609125 | Protective Neoprene Cover, 8m |
| W5025 | Single Ear Clamp |
| 10N15 | Handle |
| 315071 | Insulation Boot |
| WP18FX | Flexible Torch Body |
| WP18SP | Straight Torch Body |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
