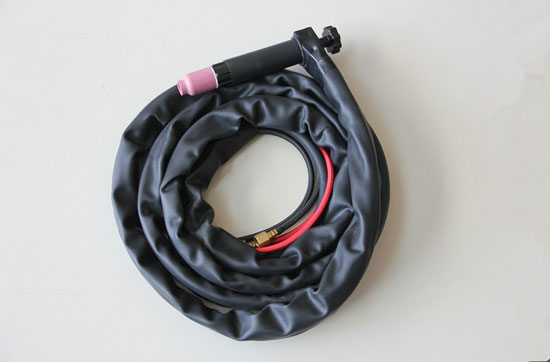

TIG WP-27 Water Cooled Tungsten Argon Arc Welding Torch
Item | TIG WP-27 Water Cooled Tungsten Argon Arc Welding Torch |
Rating | Water Cooled 500A, Duty Cycle : 60% |
Rear Connector | M12*1, 1/4G, 7/8''-14UNF RH, 5/8''-18 UNF RH |
Certification | ISO9001, CCC, CE, ROHS, TUV |
Packing | 1set/box neutral packing, 5sets/Carton Box |
Collet | |
57N47 | Collet Dia.2.4mm |
57N48 | Collet Dia.3.2mm |
57N49 | Collet Dia.4.0mm |
57N50 | Collet Dia.4.8mm |
57N51 | Collet Dia.6.4mm |
Alumina nozzle/ Ceramic Nozzle | |
57N75 | Std. Ceramic Cup Dia. 9.6mm |
57N74 | Std. Ceramic Cup Dia. 12.8mm |
53N88 | Std. Ceramic Cup Dia. 16mm |
53N87 | Std. Ceramic Cup Dia. 19.2mm |
Gas Lens Collet Body | |
49V24 | Gas Lens Body Dia. 2.4mm |
49V25 | Gas Lens Body Dia. 3.2mm |
49V26 | Gas Lens Body Dia. 4.0mm |
49V27 | Gas Lens Body Dia. 4.8mm |
49V28 | Gas Lens Body Dia. 6.4mm |
CONSUMABLES PARTS | |
WP-27A | Machine torch body 9'' |
WP-27B | Machine torch body 20'' |
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HUARUI CO., reference to the original manufacturer is for convenience only.
